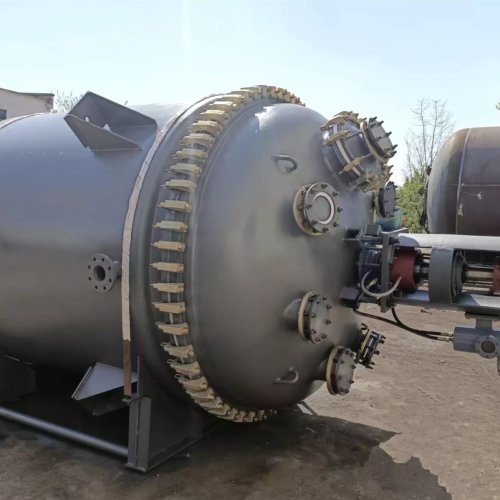

Glass Lined Reactors

Glass Lined Reactors (GLR) are engineered for highly corrosive chemical processes, offering excellent resistance to acids, alkalis, and solvents. Suitable for chemical, pharma, dyes, agrochemical and specialty process industries.

Industrial Supplies / Chemical Reactors / Process Equipment

We manufacture and supply Glass Lined Reactors (GLR) designed for safe and efficient reaction, mixing, heating and cooling operations in corrosive environments. Our reactors feature a robust MS/SS outer shell with high-quality glass enamel lining to deliver superior corrosion resistance, long service life, and contamination-free processing—ideal for demanding chemical and pharmaceutical applications.

Key Features

• High corrosion resistance against most acids/alkalis/solvents

• Smooth, non-stick surface for easy cleaning and reduced product contamination

• Jacketed design for effective heating/cooling (hot oil/steam/chilled water)

• Heavy-duty agitation system for uniform mixing and heat transfer

• Vacuum/pressure capable designs as per requirement

• Suitable for batch processes and critical applications

Applications
Chemical processing, Pharma & API, Dyes & Pigments, Agrochemicals, Resin & Polymers, Specialty Chemicals, Intermediates.

• Capacity: 50 L to 40,000 L

• MOC (Shell): MS / SS304 / SS316

• Design Pressure: 6 kg/cm² (g)

• Design Temp: -25 to 200 °C

• Jacket Type: Half coil / Limpet coil / Conventional jacket

• Agitator Type: Anchor / Turbine / Pitched Blade / Helical Ribbon

• RPM: as per requirement.

• Nozzles: As per P&ID / customer requirement

• Mounting: Leg / Skirt / Lugs

• Testing: Spark test, hydro test, vacuum test (as applicable)
