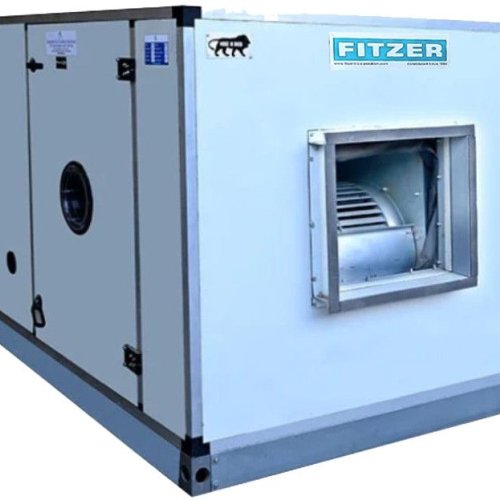

Industrial Air Washers

Air washers are industrial cooling equipment used to maintain desired space temperature and humidity condition for comfort or process requirements.

Working of Air Washer:

In Air Washers air comes in direct contact with  water which is sprayed over cellulose pads .As the hot air come in contact with water ,water evaporates and carries away heat of air in the process.  The outlet condition of air depends upon the difference between Dry bulb and wet bulb temperature of ambient air.

Air washer with improved efficiency:

FITZER - The manufacturer of air washer also provides innovated compact Air Washers with 3 or 4 side pads for more area coverage and better cooling efficiency.

Features

Single speed wired Remote controller with single phasing and overload protection.

Multi speed option with VFD to control air flow as per requirement.

Low running cost compared to Air Conditioners.

Rust free Stainless Steel Tanks.

AMCA Certified Centrifugal Blowers.

IE2 Efficiency, IP 55 Protected Electric Motors of Siemens /ABB/CG/Havells make.

Very Effective cooling in hot & dry climate areas.

Unique and non-clogging type water distribution system.

Auto water drain facility.

You will also get a gamut of added benefits of using them in any industrial area where proper cooling and ventilation is required to ensure comfortable working environment.

BENEFITS OF AIR WASHERS

Air washers reduces temperature upto 19 Deg C in Hot & Dry Climates.

Consumes upto 80% less electricity than refrigerated air conditioning.

Air washer Technology is Economic, natural & sustainable.

Air washer Improves indoor air quality by removing fumes & odours.

Evaporative cooling efficiency increases as temperature rises.

Delivers 100% fresh, filtered, healthy Natural air.

Submersible type water pump for continuous water supply.

No need to close doors & windows.

Improves productivity in industries through fresh, clean & cool air.

Low Capex & Opex.

Advantages of Air washers

Air washers has the advantage of being an hybrid appliance, a combination of an air purifier and a humidifier. Like conventional humidifiers, air washer adds therapeutic moisture to the air.

And, like a conventional air purifier, an air washer removes symptom-triggering allergens from the air. Therefore, they not only cool the air but have the capability of soothing your uncomfortable dry air symptoms and easing your allergies.

Fan Features

The fans are of international standard and are AMCA certified.

Centrifugal blower forward / backward curved as per static pressure requirements.

The fans are static and dynamically balanced.

Electric Motors

TEFC Squirrel Cage Induction Motor, IP 55 Protected VFD Compatible induction motor of Standard make

Siemens/CG/Havells /ABB etc.

Cooling Pads

High quality Evaporative Cooling Pads CELdek-Munters/ Hu-Tek / Eco-Cool make are used in Air washer for high saturation and

cooling efficiency upto 90%. The Cooling Pad of Air Washers  is made of cellulose ( Pulp ) sheet and available in 5 &  7mm flute sizes. The Cellulose Pad is cross-corrugated and coated with anti-rot, rigidifying and wetting agent.
