| Business Type | Manufacturer, Exporter |
| Ratings | 1200 °F 1400 °F 1600 °F |
| Depth | As Per Model |
| Corrosion Resistance | Yes (Excellent Corrosion Resistance Against HCl,HF,H₂SO₄,HBr) Limited Resistance To Oxidizers Li |
| Click to view more | |
Product Details
Wooden Box
Metal Sheet Box

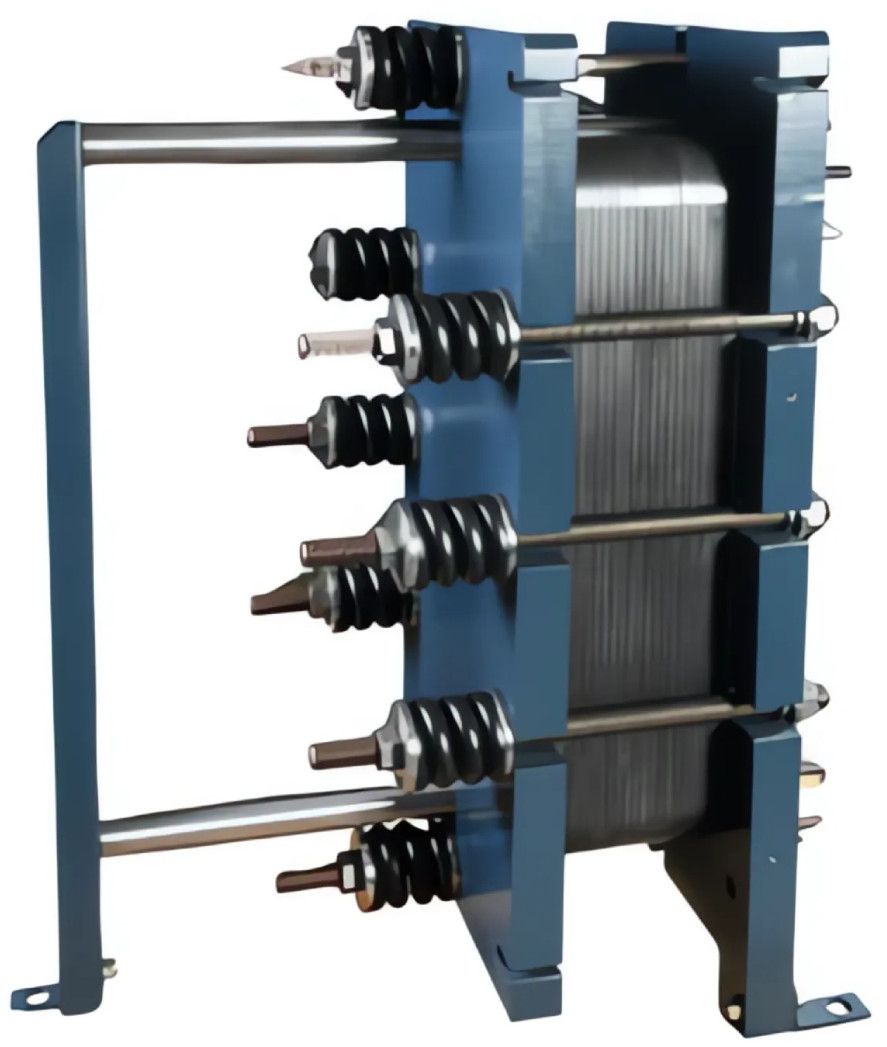

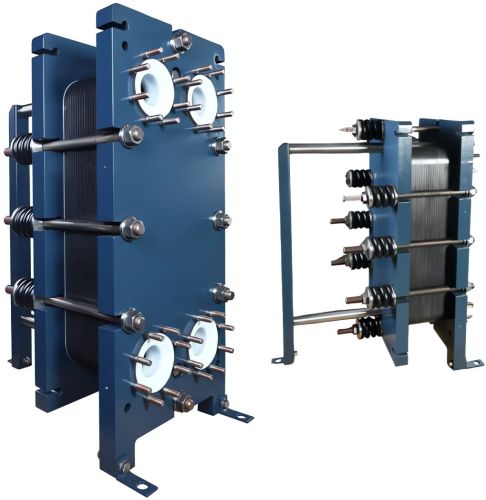

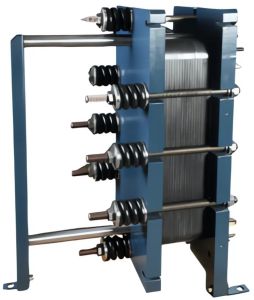

Graphite Plate & Frame heat exchangers are designed to cool down or heat up ultra-corrosive chemicals. Safety, reliability, and performance in the long-term are our primary considerations when we size, design and manufacture our impervious graphite plate heat exchangers.
Key benefits:
Efficiency
2 to 3 times higher efficiency:
These units deliver 2–3 times greater efficiency compared to conventional heat exchangers, allowing for a much more compact design. The high internal turbulence significantly increases the film heat transfer coefficient, resulting in superior thermal performance.
Corrosion Resistance
Exceptional resistance to aggressive acids:
Our range of impervious graphite plate heat exchangers offers highly customized solutions for ultra-corrosive heat transfer applications. They provide excellent corrosion resistance to strong acids including HCl, HF, H₂SO₄, and HBr.
However, they exhibit limited resistance to oxidizing agents such as Cl₂ and high-concentration H₂SO₄ (above 65%), as well as caustic solutions like KOH and NaOH.
Modular Design
Ultra-compact and fully customizable:

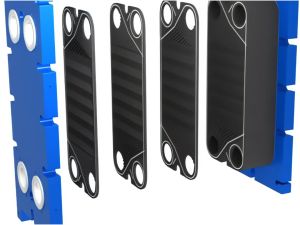

Every impervious graphite plate heat exchanger is designed with a modular architecture, enabling precise adaptation to specific process requirements.

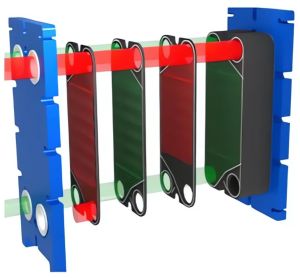

The number and dimensions of plates, along with process and service-side flow passes, can be customized to achieve optimal velocities, pressure drops, and heat transfer efficiency.
All graphite plates are precision-machined after impregnation, ensuring a perfectly smooth heat transfer surface and delivering excellent corrosion resistance along with long-term operational reliability.
Design:
Modular design: number of plates, size of plates and number of passes can be adjusted
Different plate sizes: GP 25 and GP 40
PTFE lined steel nozzles
Thermal expansion compensation ensured by helicoidal springs
MOC:
The material used for these heat exchangers is the same as that for block heat exchangers, with a high thermal conductivity of approximately 130 W/m.K.
GAB GPX 1, GPX 1T , or GPX 2 plates
Pressure plates and flanges: PTFE carbon steel
Tie rods, nuts, bolts, washers, springs: stainless steel
PTFE gaskets between the plates
Features:
Design pressure: up to 6 bars in standard
Design temperature: -30°C to +200°C (-22°F to 392°F)
Heat transfer area: up to 29m²
Nozzle sizes: DN80 / DN100 PN16
Design:according to European PED, ASME code on request
