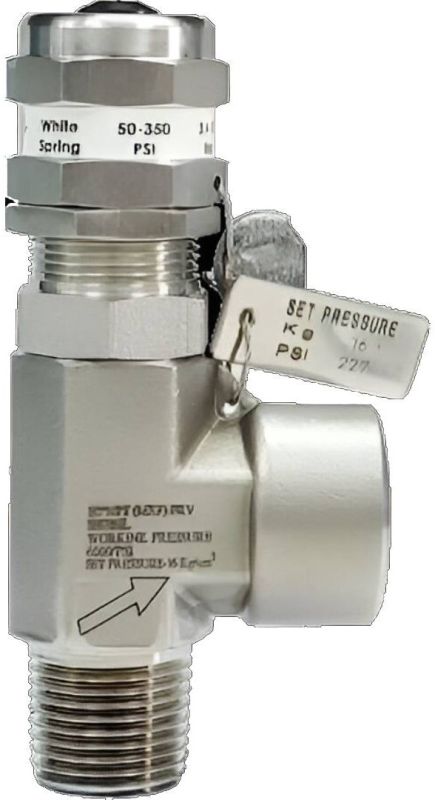

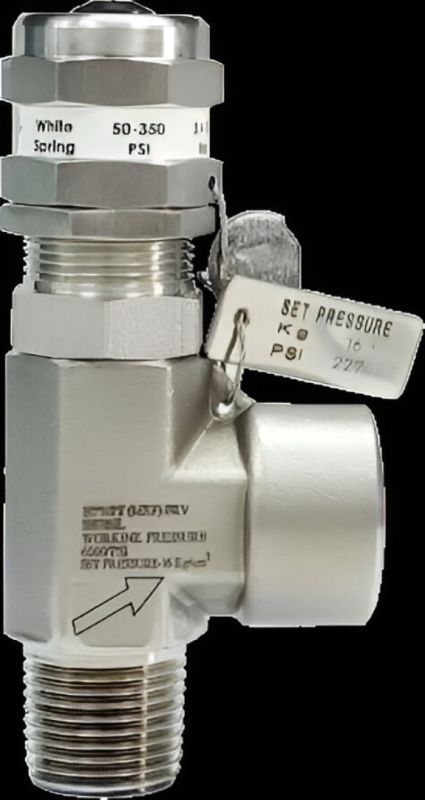

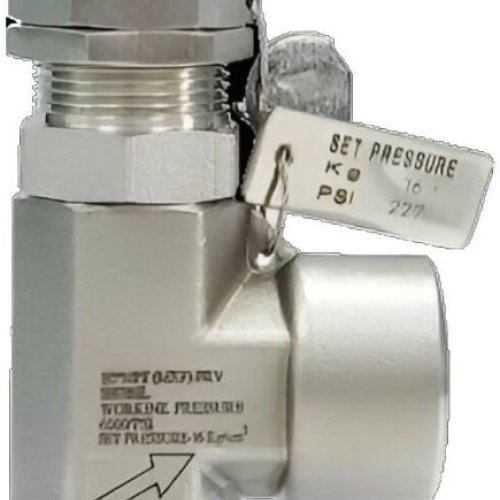

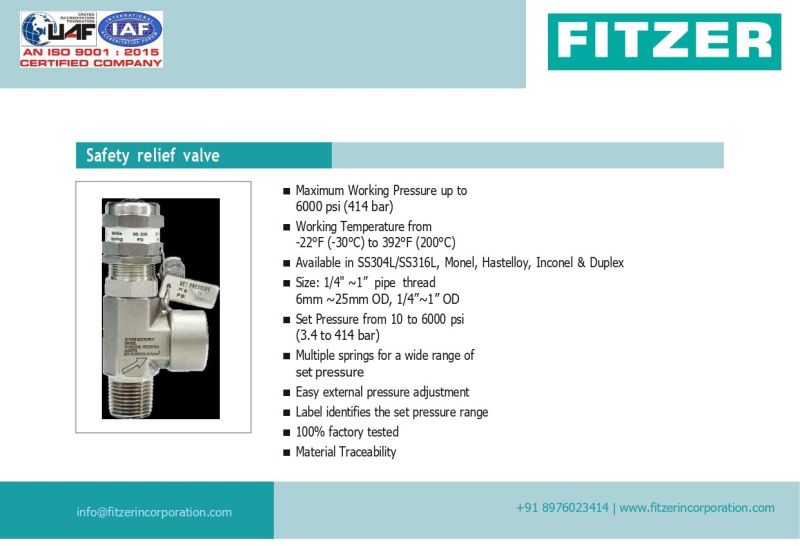

High Pressure Safety Valve

FITZER offers a range of High Pressure Safety Relief Valves designed for critical protection of pressurized systems operating up to 500 bar and 1000 bar. These valves ensure safe and reliable pressure release, preventing equipment damage, leakage, or catastrophic failure in high-pressure lines.

Each valve is precision-engineered and factory-tested, ensuring consistent performance, repeatability, and leak-tight sealing even under extreme pressure and temperature conditions.

Suitable for gas, liquid, and hydraulic systems across process industries, our safety valves conform to international safety and performance standards.

Key Features:

• Pressure range up to 1000 bar (100 MPa)

• Compact and rugged stainless steel construction

• Factory calibrated and hydrotested

• Bubble-tight sealing at seat

• Adjustable or fixed pressure setting options

• Designed for quick release and reliable reseating

• Compatible with gas, air, water, oil, and hydraulic fluids

• Easy installation and maintenance

Technical Specifications:

Applications:

• High pressure gas & liquid systems

• Hydraulic test benches

• CO₂ and compressed gas plants

• Industrial gas cylinders and manifolds

• Cryogenic and petrochemical applications

• Power plants, OEM equipment, and R&D facilities

Material of Construction:

• Body: SS316 / SS316L

• Spring: SS316

• Seat: PTFE / Viton

• Adjusting Screw: SS304

• Gasket & Seal: PTFE

Brand: Fitzer Origin: India Pressure Rating: 500 bar / 1000 bar Availability: Made to Order

MOQ: 1 Unit
