8.10 Lac / SET( + 18% GST applicable)
| Business Type | Manufacturer, Exporter |
| Mounting | Horizontal / Vertical,Duct Mounted,Boiler Integrated,Standalone Unit |
| Size | Custom Designed,Custom Engineered |
| Country of Origin | INDIA,India |
| Click to view more | |
Product Details
Supply Phase
Not Applicable
Operating Mode
Continuous Operation
Coating
Anti-Corrosion Coating,Heat Resistant Coating,Epoxy Coating
Drive Mechanism
No Rotating Components
Sealing System
Not Applicable For Tubular SCAPH
Dust Handling
Medium Dust,High Dust Environment
Air Pressure Range
Low Pressure,Medium Pressure,High Pressure
Efficiency Level
85% – 95%
Surface Type
Finned Tube
Brand
FITZER
Air Flow Capacity
Customized From 1,000 To 500,000+ M³/hr
Automation Level
Passive Heat Exchanger – No Automation Required
Fuel Compatibility
Steam Heater / Heat Exchanger
Design Type
Horizontal,Vertical
Temperature Range
150°C – 300°C
Heating Capacity
Customized As Per Project Requirement
Application
Power Plants, Boilers, Cement Plants, Steel Industry, Chemical Plants, Oil & Gas Industry, Thermal Power Stations
Material
Carbon Steel / Stainless Steel / Alloy Steel,Carbon Steel / SS304 / SS316 / Alloy Steel
Type
Tubular Air Preheater,Steam Coil Air Preheater (SCAPH),STEAM COIL AIR PREHEATER SCAPH
Color
Painted / Epoxy Coated / Hot Dip Galvanized
Heating Medium
Saturated Steam / Superheated Steam
Heat Transfer Type
Finned Tube Heat Exchanger
Fin Material
Aluminum / Carbon Steel / Stainless Steel
Design Pressure
As per Requirement
Design Temperature
Up to 450°C
Capacity
Custom Designed
Product Code
FI-SCAPH
Port
Mumbai & Gujarat
Payment Terms
T/T
Delivery Time
6-8 Weeks
Packaging Details
Wooden Pallets

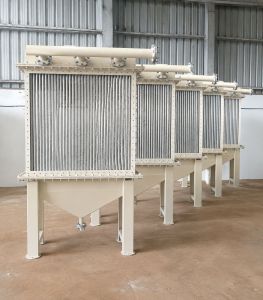

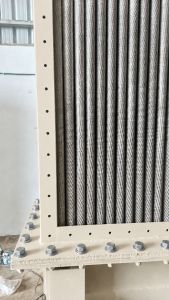

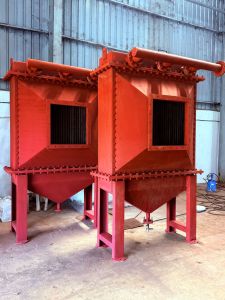

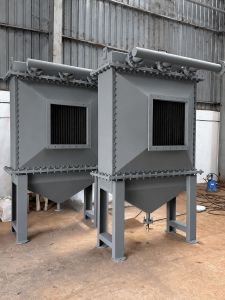

Fitzer Steam Coil Air Preheaters (SCAPH) are high-efficiency finned tube heat exchangers designed to preheat combustion air using steam as the heating medium. SCAPH systems are widely used in thermal power plants, boilers, recovery boilers, process heaters, dryers, and industrial furnace applications to improve combustion efficiency, prevent cold-end corrosion, and ensure reliable operation during startup and low-load conditions. Steam flows through the tubes while ambient air passes over the extended fin surfaces, enabling efficient heat transfer and uniform air heating.
Manufactured with robust construction and optimized thermal design, FITZER SCAPH units offer excellent heat recovery, reduced fuel consumption, lower emissions, and extended equipment life. They are custom-engineered to suit specific process requirements and operating conditions.
Features
- High thermal efficiency finned tube design
- Custom-built for boiler and process heating applications
- Carbon Steel, SS304, SS316, and alloy material options
- G-Fin, L-Fin, Spiral Wound Fin, and Extruded Fin, Spiral Crimped Fin configurations
- Low pressure drop design
- Corrosion-resistant construction
- Modular design for easy maintenance
- Suitable for high-temperature applications
- Long service life and reliable performance
Product Highlights
- High-efficiency Finned Tube Steam Coil Air Preheater
- Custom-designed for Boilers, Power Plants, and Process Industries
- Steam as Heating Medium
- Carbon Steel, SS304, SS316, and Alloy Steel Construction
- Horizontal or Vertical Configuration
- Improved Combustion Efficiency and Fuel Savings
- Reduced Corrosion and Enhanced Boiler Performance
- Designed and Manufactured by FITZER Incorporation, India
Applications
- Thermal Power Plants
- Steam Boilers
- Recovery Boilers
- Waste Heat Recovery Systems
- Industrial Furnaces
- Dryers
- Sugar Plants
- Chemical Industries
- Petrochemical Plants
- Refineries
- Pulp & Paper Industries
SCAPH, Steam Coil Air Preheater, Steam Air Heater, Boiler Air Preheater, Finned Tube Air Heater, Combustion Air Heater, Industrial Air Heater, Tubular Air Preheater, Steam Heated Air Preheater, Power Plant Air Heater, Boiler Efficiency Improvement System.
