Ankleshwar Gidc, Gujarat
- GST NO. : 24ACNPC1767D1ZW
Mobile : View Mobile Number
5 Lac / Piece( + 18% GST applicable)
| Business Type | Manufacturer, Exporter |
| Feature | cools efficiently using Air-Cooled HX without water evaporation, cost-saving, water-scarce regions. |
| Brand Name | FITZER |
| Material | FRP, Stainless Steel,Copper tubes (5/8" OD) with galvanized steel frame |
| Click to view more | |
Product Details
Driven Type
Electric
Color
Grey, Light White, INDUSTRIAL GRADE,As per industrial Grade
Condition
New
Automatic Grade
Automatic, Fully Automatic, Semi Automatic
Power
upto 5000 KW
Cooling Type
Closed-circuit air cooling system
Voltage
220V
Capacity
As per Capacity in KW
Type
Dry Cooling Towers, Heav Duty,Dry Cooling Tower - V & H Shape
Weight
As Per Designed
Warranty
1year, 1year,One Year
After-Sales Service Provided
Yes
Country of Origin
India
Temperature
50-100℃
Gauge Thickness
10-15mm
International Standard
ASME. TEMA, ASHRAE, IBR, ASME-U-STAMP & R -STAMP
Cooling Method
Air-cooled heat exchangers with extended fins - Water Consumption: Zero (closed-loop system) - Material: Copper tubes (5/8" OD) with galvanized steel frame - Fan Type: Axial flow fan
Water Consumption
Zero (closed-loop system)
Fan Type
Axial flow fan, aerodynamically balanced - Motor: IP55-rated, low-speed for efficiency and noise reduction - Applications: Power plants, industrial cooling, HVAC systems - Construction: No
Motor
IP55-rated, low-speed for efficiency and noise reduction - Applications: Power plants, industrial cooling, HVAC systems - Construction: Non-corrosive fiber glass/GI panels, heavy-duty base fr
Application
Power plants, industrial cooling, HVAC systems,Dry Cooling
Size
As per Capacity
Product Code
FI-DCT-
Port
Mumbai & Gujarat
Payment Terms
T/T, Other
Delivery Time
3-4 Weeks
Packaging Details
Wooden Pallet Packaging

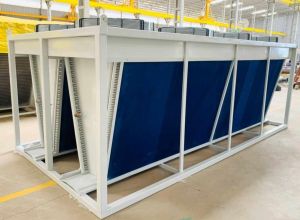

A Dry Cooling Tower is a type of cooling system that operates without water evaporation, making it ideal for regions with water scarcity. It functions by transferring excess heat from industrial processes through a closed-loop system, where heat is dissipated via air-cooled heat exchangers with extended fins.
Key Features:
- Closed-Circuit Operation: Heat is transferred through a surface separating ambient air from the working fluid (typically water or a water-glycol mixture).
- Air Cooling Technology: Uses natural or mechanical draft to move air over heat exchangers, eliminating the need for water evaporation.
- Minimal Water Consumption: Unlike wet cooling towers, dry cooling towers do not require makeup water, reducing operational costs.
- Applications: Commonly used in power plants, industrial cooling, solar energy systems, and HVAC applications.
Technical features
- Casing in galvanized steel, painted with epoxy (RAL 9002)
- Battery frame in galvanized steel
- Copper tubes and aluminium fins
- Two heat exchanger lengths available:
- DUAL versions available, with two independent cooling circuits and fan sections
- 3 possible configurations depending
- Electrical box for fans connections and associated protection (option)
- Aluminium-coated fins (option)
- Copper fins (option)
- Stainless steel tubes (option)
