Ankleshwar Gidc, Gujarat
- GST NO. : 24ACNPC1767D1ZW
Twitter| Business Type | Manufacturer, Exporter |
| Finishing | SAND BLAST |
| Type | Heavy Duty |
| Material | Metal |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Usage
Industrial
Voltage
220 V
Warranty
1 Year
Weight
As Per Designed
Brand Name
FITZER
International Standard
ASME. TEMA, ASHRAE, IBR, ASME-U-STAMP & R -STAMP
Plate material
Stainless steel (304, 316, 315J1, 317), titanium, high nickel alloy, nickel, or other standard materials
Gasket material
NBR, IIR, EPDM, FPM, silicon, or TCG (PTFE cushion gasket)
Working pressure
Up to 4.0 MPaG
Working temperature
Up to 180°C
Heat transfer area
0.18 m2/unit to 3,400 m2/unit
Processing capacity
0.1 m3/h to 7,300 m3/h
Plate thickness
Not less than 0.4 mm
Plate alignment
Interlocking mechanism pressed into each plate to ensure proper sealing
Catalog
ViewProduct Code
FI-PHE-
Port
Mumbai & Gujarat
Payment Terms
T/T, Other
Delivery Time
3-4 Weeks
Packaging Details
WOODEN & CORRUGATED

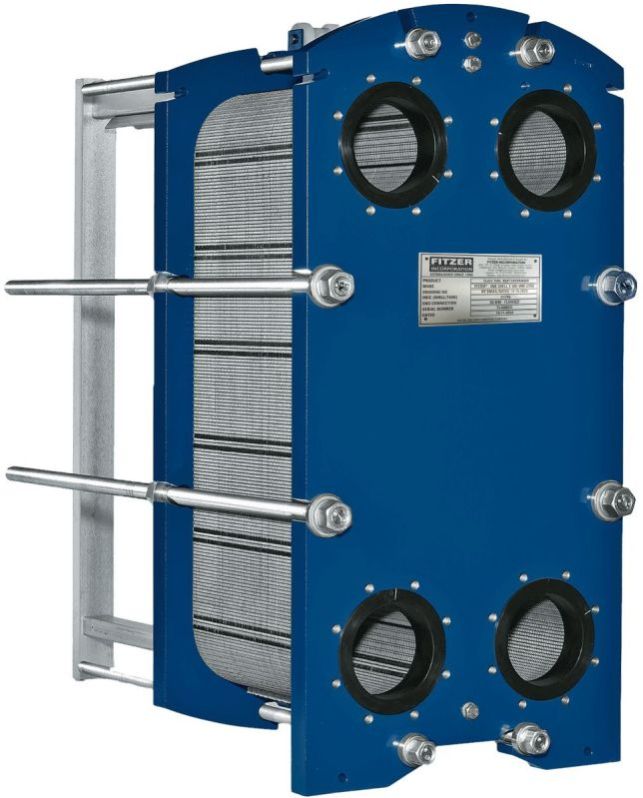

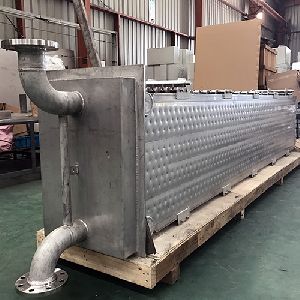

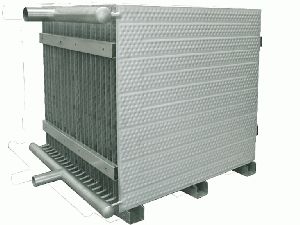

Pillow Type Plate Heat Exchanger uses metal plates to transmit heat between two fluids and is available in different specifications. Also, using this modern solution has more advantages over conventional heat exchangers.
At FITZER, you will get the unparalleled quality at industry leading prices. Being one of the industry’s leading Plate Heat Exchanger Manufacturers in Gujarat - INDIA, We offer several specifications to choose from.Major Characteristics Of Plate Heat Exchanger Are:

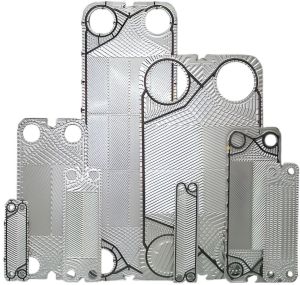

- Simple And Compact Design: This Industrial Plate Heat Exchanger has a simple fabrication and comes in small and easy-to-use designs to fit in your industry premises. These thin sheets have corrugations and patterns to increase the surface area as well as the efficiency of the products.
- Quick To Clean And Maintain: These Heat Exchangers are made of good quality metal, which makes it easier to clean and maintain them after completing the application.
- Easy To Enhance The Capacity: You can simply expand the size and capacity of the sheet by just adding one along with others.
Application Areas:
- Steel Industry
- Marine Industry
- Pharma Industry
- Dairy Industry
- Beverage Industry
Graph
