Product Details
Fitzer Incorporation offers precision-engineered U-Tube Absolute Pressure Mercury-Filled Manometers designed for accurate and reliable measurement of absolute, differential, and gauge pressure in laboratory and industrial applications.
In process of Chemical, Pharmaceuticals, Food Industries, Fertilizer, Oil Industries, Process Engineering Industries and where accurate measurement of absolute pressure vacuum require in its last stages.

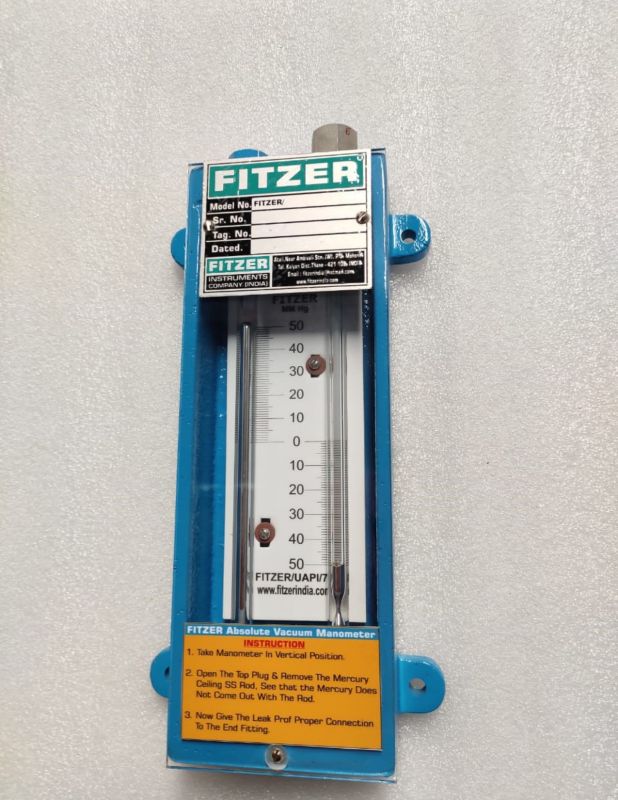

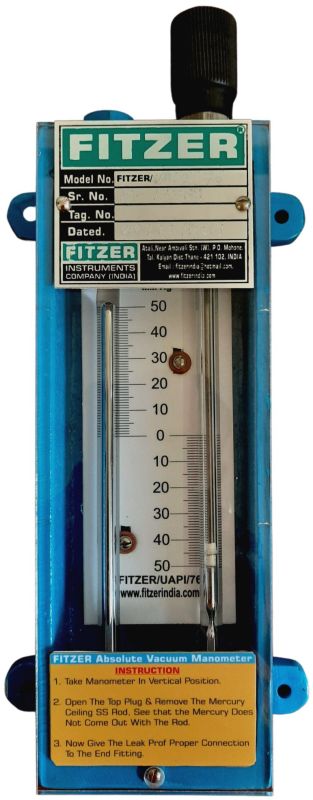

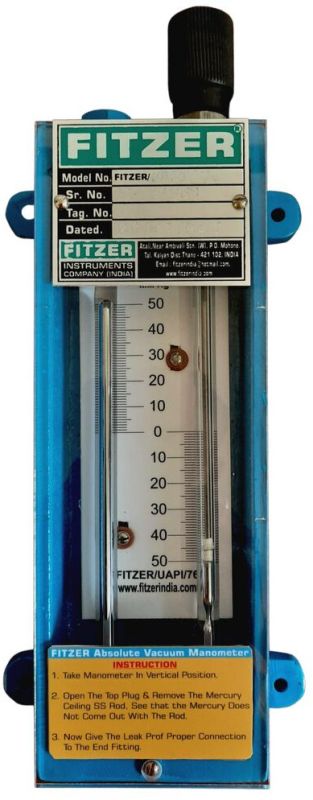

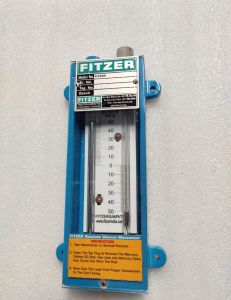

The manometer consists of a transparent glass U-tube partially filled with high-purity mercury, providing a direct and visual indication of pressure difference. One leg of the tube is connected to the process pressure source, while the other is sealed under vacuum to measure absolute pressure with exceptional stability and repeatability.
Ideal for: Calibration setups, test benches, HVAC systems, fluid mechanics labs, and industrial process instrumentation.
Key Features:
High-accuracy absolute pressure measurement
Transparent borosilicate glass U-tube for clear mercury column visibility
Scale graduated in mmHg / cmHg / kPa / bar (as per requirement)
Mercury filling ensures stable readings with minimal temperature effect

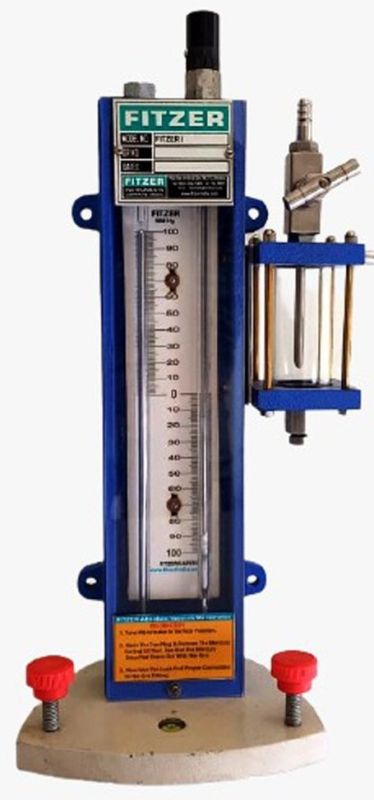

Wall-mounting or stand-mounting options
Suitable for air, non-corrosive gases, and clean dry process applications
Compact, easy to maintain, and long-life design
Technical Specifications:
ParameterDetails
TypeU-Tube Mercury-Filled Manometer
Measurement Range0–760 mmHg (customizable up to 2000 mmHg)
FluidTriple-distilled Mercury
Tube MaterialBorosilicate Glass
ScaleScale milky white PVC with Black marking lines and figures
Accuracy±0.25% F.S.
End ConnectionBrass / SS304 / SS316
MountingWall / Panel / Portable Stand
Operating TemperatureUp to 60°C
ApplicationAbsolute, Differential, and Gauge Pressure Measurement
Applications:
Calibration laboratories
HVAC & clean-room testing
Research and educational institutes
Industrial process monitoring
Instrumentation and control systems
Material of Construction:
Tube: Borosilicate Glass
Scale Plate: Scale milky white PVC with Black marking lines and figures
End Fittings: SS316 / Brass
Filling Medium: Pure Mercury
Brand: FITZER
Origin: India
Availability: Ready Stock / Made to Order
MOQ: 1 Unit
